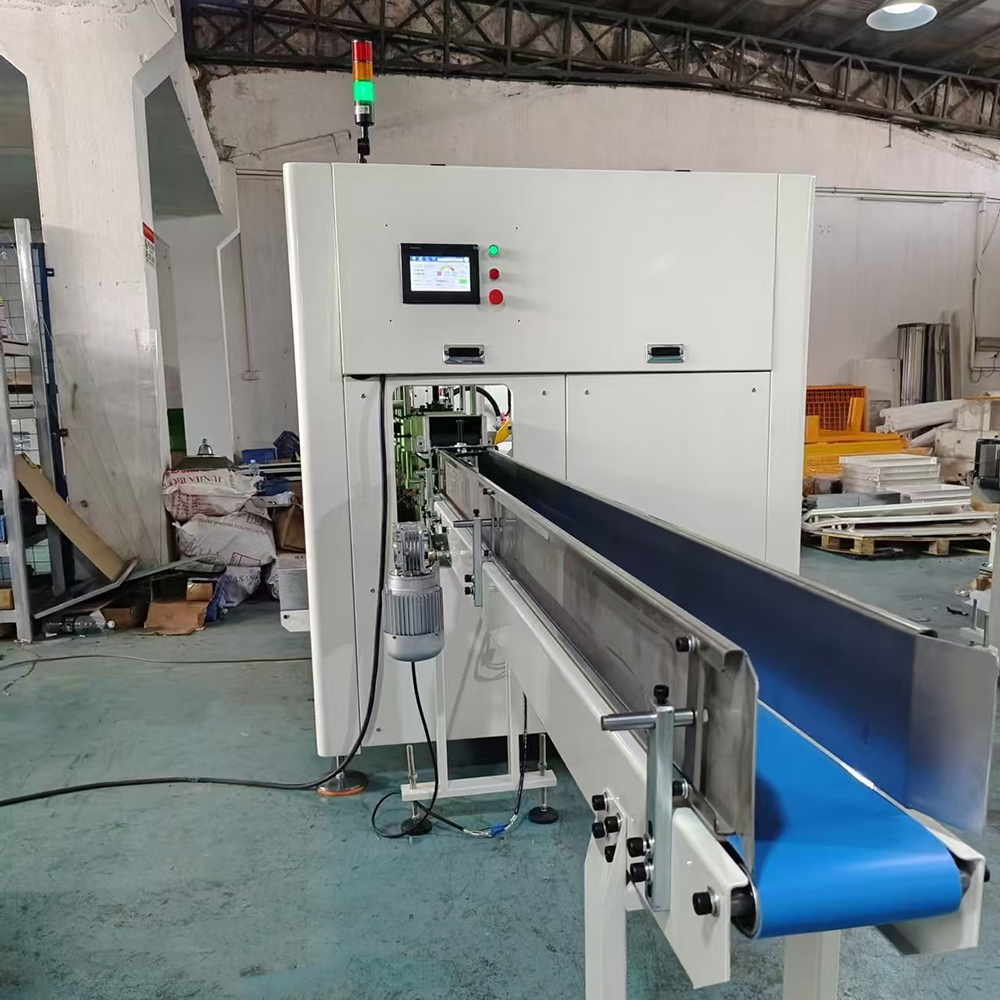

Hand towel logsaw(Left and right clip type)

Cutter part

1. Cutting specification；   Clip cut-off length=130mm-240mm；width=100-200mm；height=60-80mm

2. Production speed; 100-150 cut / minute (according to the length)

3. Edge cutting mode: head and tail cutting function, LC program control, touch screen operation , the length of head and tail is 15mm- -25mm; automatic output (optional waste elevator)

4. Control system；     PLC program control, servo drive, touch screen operation

5. Feed mode；     Servo drive, synchronous belt synchronous positioning deliver

6. Cut method；     360°Rotary motion continuous cutting

7. Accuracy；     Cutting offset±1mm

8. Grinding system;     Automatic knife sharpening, touch screen setting parameters

9. Cutter outer diameter    ￠610mm

10. Air supply;      0.5Mpa（Provided by the demand-er）

11. Power type;      380V/50Hz

12. Total power;      9.8KW

13. overall dimension;   L=1700mm×W=1900mm×H=2000mm

14. (Storage channel 1.5-2 m) Determine the length of the channel according to the total jumbo roll width

15. Weight;       2 ton

16. Color;      Milk white; baking paint spraying process

17. Machine servo system、PLC、Touch screen、Drivers；XinJie or Delta brand

18. Bearings from German FAG Series，Synchronous belt Japan UNIENTI series

19. Photoelectric sensor ；Italian datalogic brand ,Japanese Panasonic (Panasonic) brand

20. Electrical sensor detecting system for paper production, including packaging machine and conveyor. The cutting machine will stop automatically when the products are accumulated due to failure；

21. Motor inverter control, energy saving and power saving, frequency converter Xinjie or Delta

22. The console is touch screen and the panel is stainless steel

23. The electric control box is integrated with the machine to ensure that the line has no damage and safety problems；

24. Safety cover built-in iron net, outside observation with perexiglass, safety protection function

25. Equipped with a paper laying machine and automatic output machine, better solve the empty package

26. Equipped with an automatic waste output device, the waste material can be perfectly discharged, with no impact on the environment and the packaging machine.

1SET

Hardcore-part

Acceptance terms

1.Run at 50-100 cuts/min for 4 hours for production test (to be determined by both parties according to the actual situation).

2.During the acceptance process, no large mechanical faults, small problems not more than 2 times.

3.During the acceptance process, each component must operate reliably, and the operating component must have a normal temperature.

4.The incision is flat and there are no obvious uneven cutting

5.The middle part of the deviation of slitting length shall not exceed plus or minus 0.5mm,The head and tail shall not exceed plus or minus 1mm based on the middle set size(Except for the folding problem of the demander's product）

6.During the equipment acceptance, both parties shall agree on the acceptance size and effective methods for the product quality. Specific test data statistics are judged according to the average accounting method, and the qualified rate reaches more than 98%.

Quality   assurance

Free accessories

1． Toolbox 1 set

Production guarantee

Technical data

One English instruction manual (including inverter operation manual, electricity and air diagram and installation diagram);

Classification

No.

Name

Model

Qty

Unit

Brand

Electrical class

1

Three-phase tool holder electromagnetic brake motor

3.7KW 4P

1

SET

LPG

2

Three-phase large round knife asynchronous motor

3KW

1

SET

XINYIDA

3

Gear motor(Feeding storage motor)

380V 0.75KW4P

2

SET

ZHENGMING/XINYIDA

4

High-precision servo speed reducer

PW120-L1-7-P1

3

SET

NEWGEAR

5

Servo motor

1KW

2

SET

Delta/XINJE

6

Human-machine interface (touch screen)

DOP-107BV

1

SET

Delta/XINJE

7

Programmable controller (PLC)

DVP60ES2

1

SET

Delta/XINJE

8

Servo drivers

ASD-B2-0721-B

2

SET

Delta/XINJE

9

Inverter

DVP037EL43A(3.7KW)

1

SET

Delta/XINJE

10

Inverter

DVP022EL31A（3KW)

1

SET

Delta/XINJE

12

Power Supply Switch

NES-100-24

1

PCS

Omron, Japan

Switch class

13

Travel switch

4

PCS

CHINT

14

Photoelectric switch

S3Z-PR-2-FG01-ND

4

PCS

 Italy datalogic

16

Three-phase AC contactor

CJX2-3210(AC220V)

1

PCS

CHINT

17

Intermediate relay

JZX-22F(D)/4Z(24V14脚

3

PCS

CHINT

18

Grinding cylinder

QGY50*10

2

PCS

XINGCHEN

Cylinder

19

Grinding cylinder

QGYE40*15

1

PCS

XINGCHEN

20

Press bottom cylinder

CQ2B50-10

1

PCS

XINGCHEN

21

Bearing block

PCS

FSB

Bearing class

22

Bearing

PCS

Germany FAG

23

Sliding guide rail

PCS

TAIWAN HIWIN

Belt class

24

Timing belt

PCS

JAPAN UNIENTI
