Automatic Multi Rolls Toilet Paper Bundling Packing Machine ZB680F
Applicable
As a professional roll tissue machine supplier, Soontrue can provide various toilet roll packaging machine and bandsaw machines with different specification choices, which can greatly meet the needs of different customers.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Specifications
| Model number | ZB680F |
| Average Speed | 20-25bundles/min |
| Packing type | 4.6.8.10.12 rolls |
| Finished bundle size | 690*(160-260)*(90-125)mm (L*W*H) |
| Bag material | PE Pre-made bag |
| Packing film thickness | 40-65μm |
| Pre-made bag stock | 2 bag stocks, automatically change |
| Machine size | 8640×2830×1800mm（L×W×H） |
| Whole power | 14.8kw |
| Power supply | 380V 50HZ |
| Air consuming | 0.5～0.7Mpa ,air usage: 350L/min |
| Weight | Around 4000kg |
| Noise |
≤80 dB |
If you are interested in this paper bundling machine, leave us a message and get the tissue paper packing machine price.
Videos
Features
ZB680F multi-function roll paper big big packaging machine adopts PLC and servo motor control, the whole machine is reasonable design, fine processing, using domestic and foreign famous brand components, with convenient configuration and reliable, mature and stable performance, wide applicability characteristics. The whole machine is composed of several parts, such as bag conveying, material sorting, bag opening, bag pushing, sealing and negative pressure system. Among them, bag conveying mechanism (2pcs), material sorting mechanism (4pcs), bag pushing mechanism and upper suction bag (1pcs) are driven by servo, and other conveying mechanism of the equipment is driven by motor.
- 1) The equipment has a unique automatic material sorting mechanism, can quickly realize the switch of different packaging specifications, design space convenient maintenance;
- 2) The equipment has automatic and accurate bag feeding, automatic alarm or stop when the bag is missing;
- 3) The material will be removed automatically when the equipment stops. It has the function of collecting surplus material, it should automatically alarm or stop when surplus material is blocked
This series of tissue paper packaging machines are suitable for packing tissue rolls in a bundle. These paper bundle packing machines are suitable for packing bundling rolls (6,8,10,12 toilet roll bundles in one bag). In addition, this type of toilet paper wrapping machine can also be connected with a log saw machine or a single roll wrapping machine.
Details

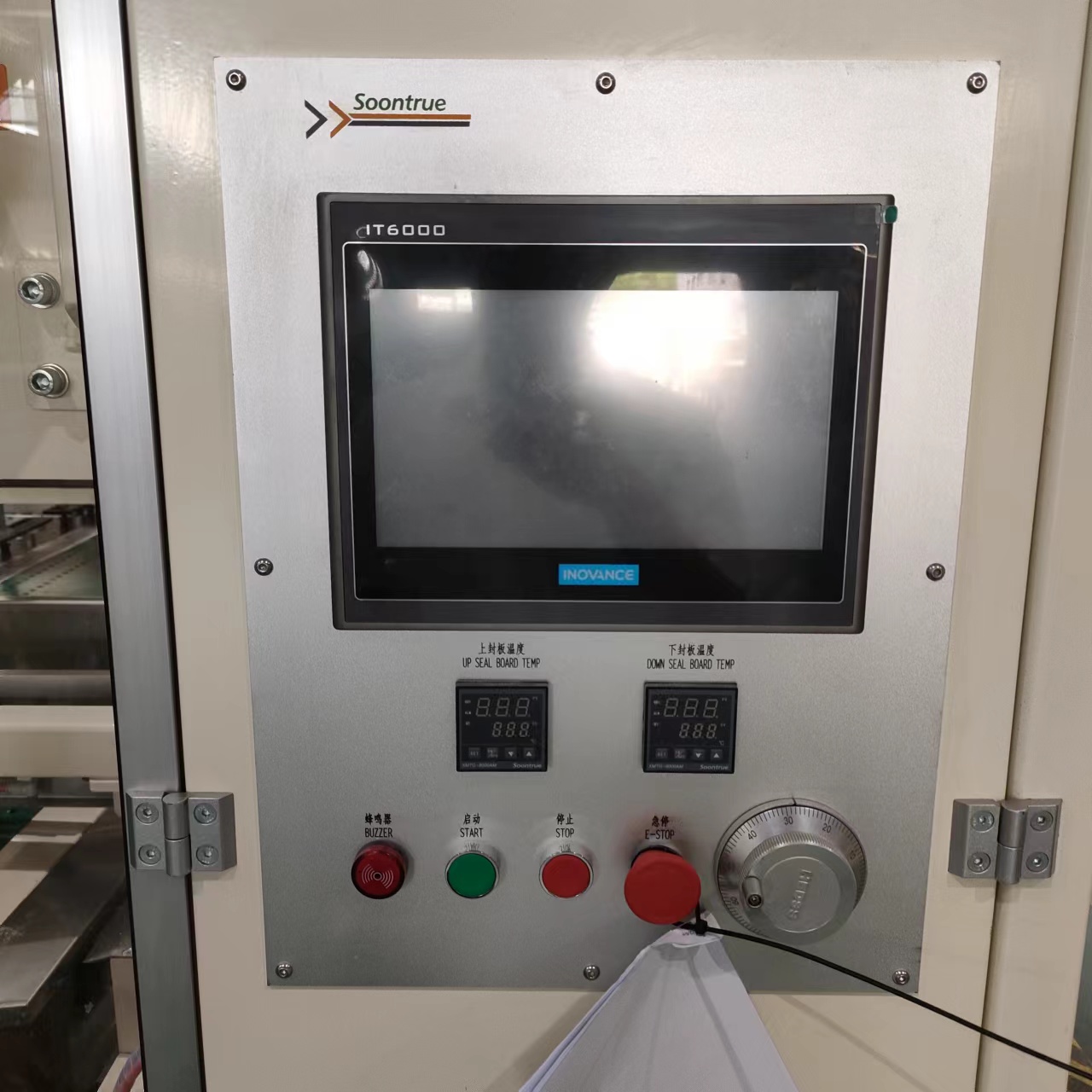

Big touch screen(HMI) --- Easy for operation ,The operation fault will display on the HMI

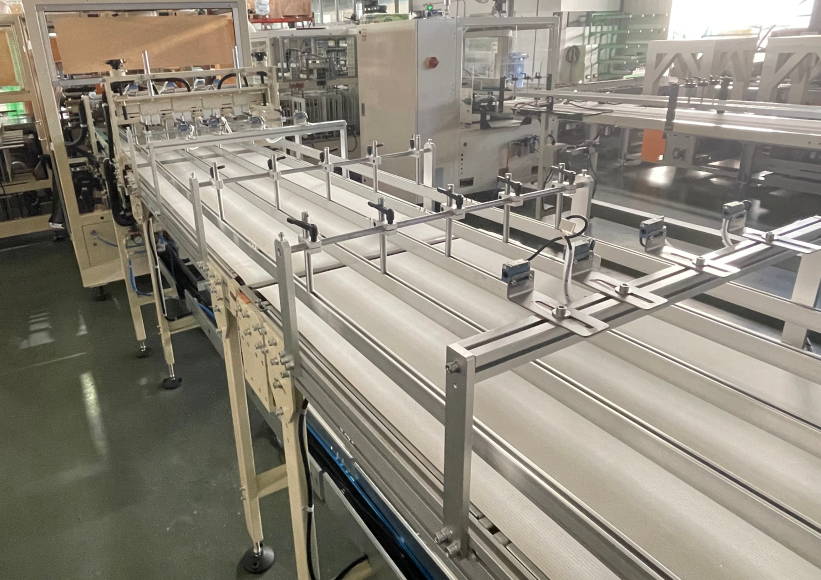

The whole machine adopts unique feeding mechanism, the material feeding can be configured according to the production，the equipment has the characteristics of simple structure, easy maintenance and so on

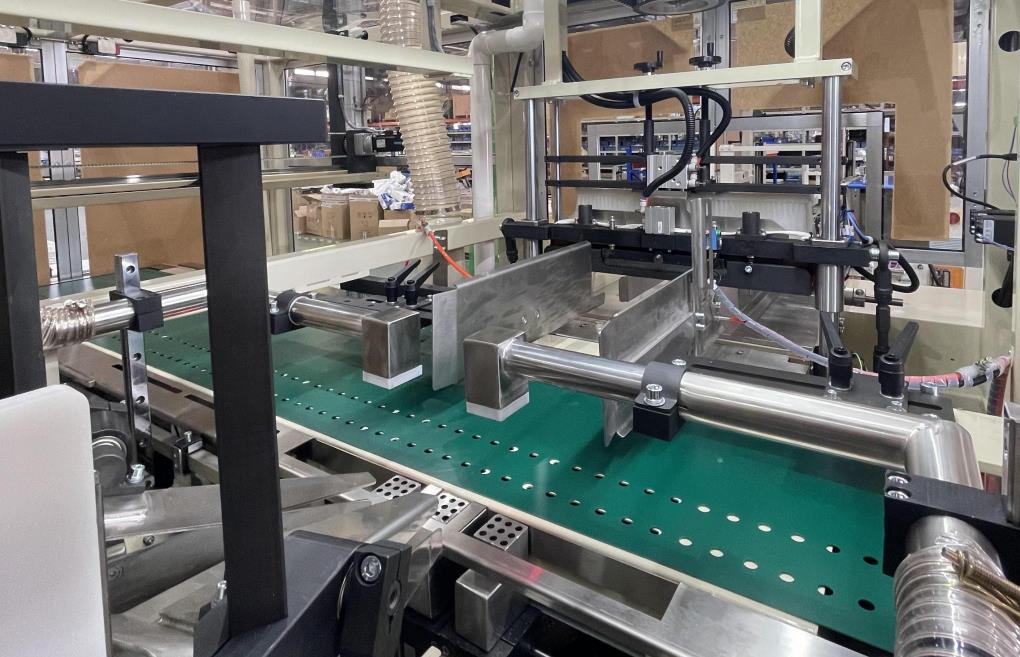

Automatic and accurate bag feeding, automatic alarm or shutdown in case of missing bag
