Main machine

1. Cut specification；    L=90-220mm、W=80-120mm、H=25-120mm

2. Cut speed；     80-320cuts/min

3. All the motors is bigger than needed to ensure the more stable performance.

4. Control system；     PLC、servo drive and HMI

5. Feed way；     Servo driver, and timing belt fixed and conveyor

6. Cut type；     360°rotary running type

7. Include the head and tail cut function, length is around 15mm---25mm

8. Cut accuracy；     Cut difference＜1mm

9. Cut grinding system; Automatically and Grind wheel fixed angle(with dust sucking system)

10. Cutter diameter;    ￠610mm

11. Air supply;      0.5Mpa（supplied by buyer）

12. Power supply;     380V/50Hz

13. Total power: 7KW

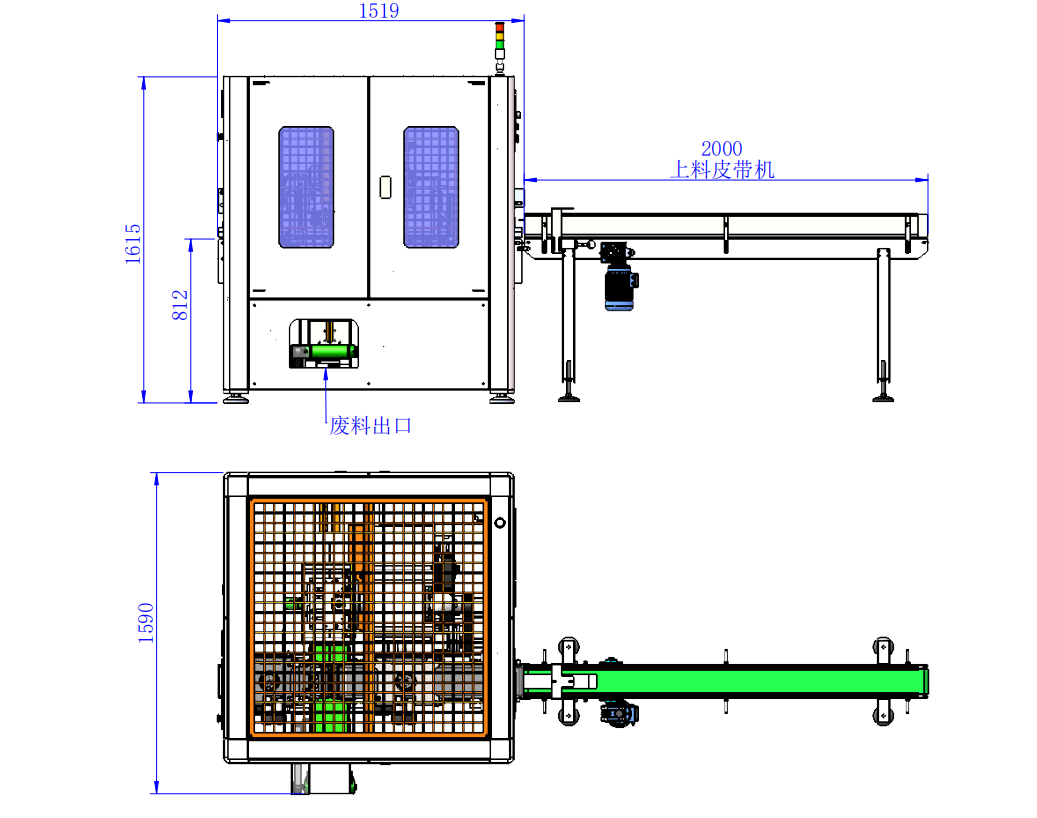

14. Machine size;   L=1529mm×W=1690mm×H=1615mm

15. Machine weight;       1.5ton

16. Machine color;      creamy white color as picture

17. Whole machine servo system, PLC system and HMI system is INOVANCE Brand;

18. Main machine bearing adopts HRB NSK series and the timing belt is Japan LSD

19. Machine machine sensor system adopts Germany SICK or Japanese Panasonic brand, German Leuze brand

20. Machine paper tissue has sensor detect system and with automatically stop function when back packing machine has problem;

21. Inverter controls motor and driver adopts INOVANCE Brand;

22. The machine is integrated with the cabinet to ensure the wires no damage and more safe.

23. The guard is organic glass and with wires net inside to avoid hand putting inside
